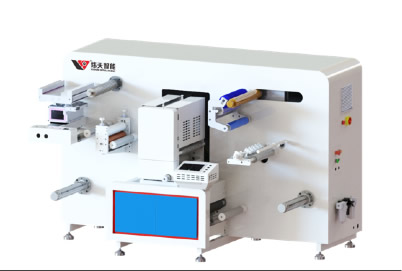

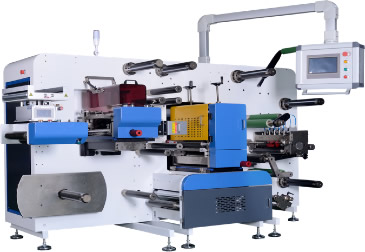

Vision Vs-B330 Automatic High Speed Slitting and Rewinding Machine

Similar to Rotoflex Vsi-330 (Close Specifications but with More Features)

• Automatic Tension System
• Servo driven unwinder with precise unwind tension control
• Maximum unwind diameter 800m with end reel detector
• Slitting Cutter: Circular blades 10 pcs
• With manual knives slitting system
• Semi – Automatic Turret up rewinding unit up to 450mm
• Automatic slow down, stop and turn, build in label counter (touchscreen )
• Unwinding unit with 1pc 3inch (76mm) air shaft
• Rewinding airshafts with 2pcs 3inch (rewind onto 76mm cores) on turret system
• Electronic web guide with Ultrasonic sensor
• Trim Waste removal suction system
• Easy access splicing table with web clamps
• Web – 330mm wide
• Super-fast speed – Runs up to 300 meters per minute
• Electronic synchronised LED stroboscope for print inspection
• 10inch user friendly touchscreen HMI, job parameter archive
• Remote service with agents linked to the HMI in the machine (run a LAN cable from the machine into your router)

Call the service centre – they will troubleshoot for any machine problems, faults

and do any updates required.

Additional –

• Rewinding airshafts – 2pcs 1.5 inch (40mm cores )
• Rewinding airshafts – 2 pcs, 1 inch ( 25mm cores )
